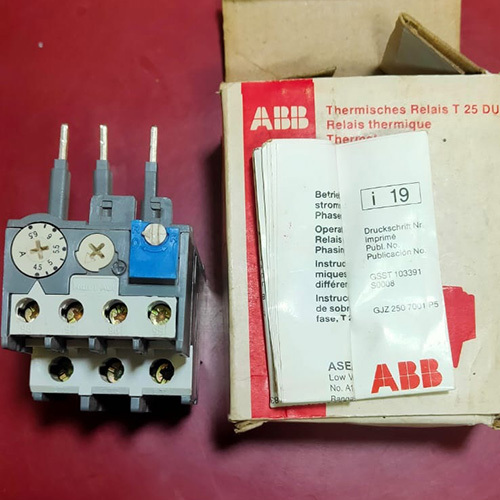

ABB Overload Relay

Get a Price/Quote

MOQ : 10 Units

ABB Overload Relay Specification

Power Consumption
2 W

Mechanical Life
Over 10 Million Operations

Coil Power
N/A (No coil, thermal mechanism)

Contact Form
1 NO + 1 NC

Working Temperature
-25C to +60C

Contact Material
Silver Alloy

Protect Feature
Phase Failure Sensitivity, Auto/Manual Reset

Dielectiric Strength
2.5 kV for 1 minute

Coil Voltage
N/A (No coil, directly actuated)

Contact Resistance
50 m

Ambient Temperature
-25C to +60C

Product Type
Overload Relay

Insulation Resistance
Minimum 100 M at 500 V DC

Theory
Thermal Overload Protection

Usage
Protection of motors against overload and phase failure

Contact Load
AC-15: 3A at 230V AC

Operate Time
Less than 0.3 s

Terminal Type
Screw Terminal

Rated Voltage
690 V AC

Supply Terminal
Bottom and Top

Size
Standard, for direct mounting to contactor

Color
Gray

Dimension (L*W*H)
45 x 90 x 85 mm

Weight
130 g

IP Rating
IP20

Application
Three-phase AC motors, industrial panels

Pollution Degree
Degree 3

Current Range
7 - 10 A

Connection Capacity
1 x 2.5 mm2 - 2 x 1.5 mm2

Vibration Resistance
5...15 Hz, 0.35 mm amplitude

Mounting Type
Direct Mounting on Contactor or Panel

Standards
IEC/EN 60947-4-1, CE Certified

Reset Type
Manual & Automatic

Shock Resistance
15 g, 11 ms duration

Trip Class
Class 10A

ABB Overload Relay Trade Information

Minimum Order Quantity
10 Units

Payment Terms
Cash in Advance (CID)

Supply Ability
500 Units Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About ABB Overload Relay

Pick Yours now-this is your Last Chance to secure the peerless ABB Overload Relay, designed for protection of motors and industrial panels. It offers an unmatchable current range of 7-10 A and meets the astoundingly high IEC/EN 60947-4-1 standards and CE certification. With direct mounting flexibility, manual or automatic reset, and Class 10A trip class, this gray device ensures robust protection against overload and phase failure. Its shock and vibration resistance-plus a mechanical life beyond 10 million operations-make it an offer that stands unrivaled in reliability and performance. Act now!

Versatile Protection & Premium Features

Engineered for motors and industrial panels, the ABB Overload Relay delivers steadfast protection against overload and phase failure. Its durable silver alloy contact material and IP20 enclosure guarantee reliable performance, even in challenging industrial environments. Suitable for installation directly on contactors or panels, this device is ideal for three-phase AC motors in a variety of applications, thanks to its auto/manual reset options and superior ambient temperature tolerance. Perfect for robust site operations demanding consistent safety.

Reliable Delivery & Market Value Certification

Serving both the export market and domestic mar, we ensure prompt delivery times for every ABB Overload Relay unit. Flexible payment terms allow seamless transactions for traders and wholesalers across India, boosting your business's market value. Certified to IEC/EN 60947-4-1 and CE standards, each relay is backed by documented quality assurance that increases confidence in any procurement process, assuring precision and dependable protection for every competitive market segment.

FAQ's of ABB Overload Relay:

Q: How is the ABB Overload Relay installed?

A: The ABB Overload Relay is designed for direct mounting onto a contactor or a control panel using screw terminals, ensuring a secure and straightforward installation process.

Q: What types of applications is this overload relay suitable for?

A: This relay is ideal for protecting three-phase AC motors and industrial control panels in various environments, especially where reliable overload and phase failure protection are required.

Q: When should manual versus automatic reset be used?

A: Manual reset should be used in situations where inspection is necessary after a trip, while automatic reset is suitable for systems requiring a quick return to operation without manual intervention.

Q: Where can this relay deliver optimal performance?

A: The relay excels in environments with vibration and shock, such as industrial facilities or factory floors, thanks to its impressive resistance specifications and wide working temperature range.

Q: What are the benefits of using the ABB Overload Relay for motor protection?

A: The device provides astoundingly fast response-operating in less than 0.3 seconds-to prevent motor damage. Its phase failure sensitivity, high dielectric and insulation capacities, and prolonged mechanical lifecycle ensure unmatchable durability and peace of mind.
